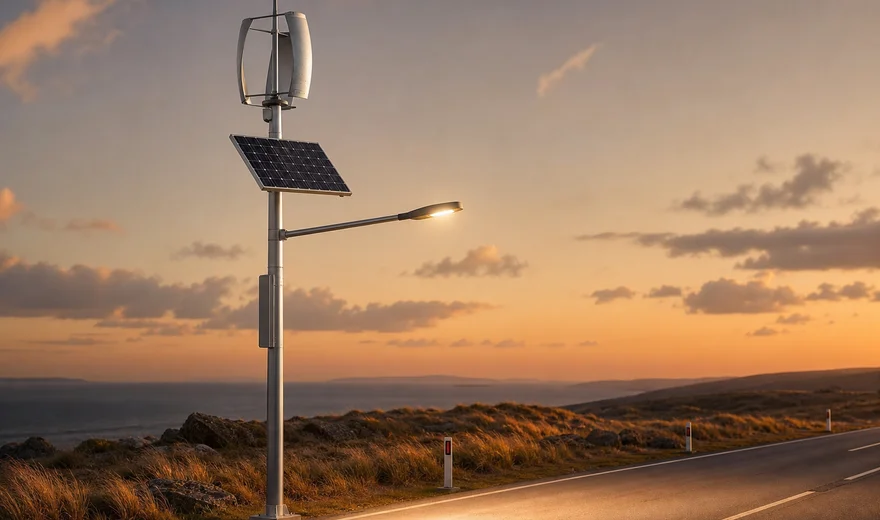

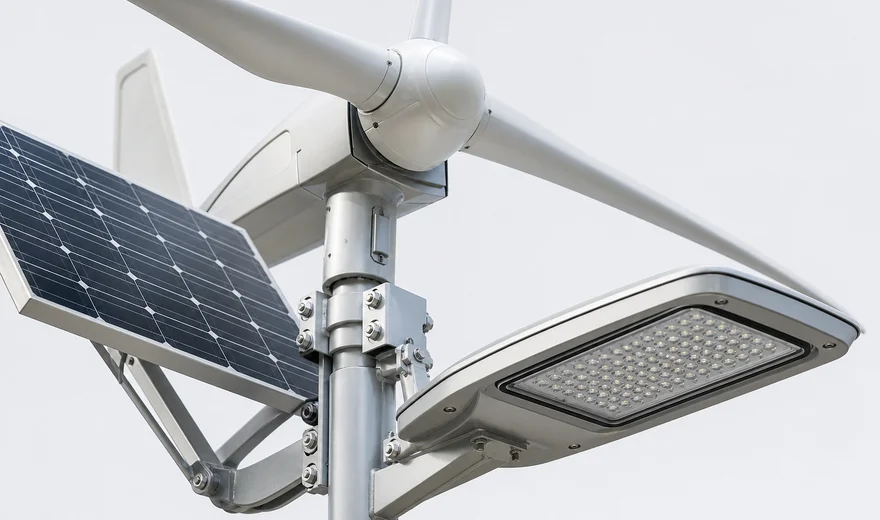

Wind-Solar Hybrid Street Light 60W
60W wind-solar hybrid LED street light — turbine plus PV complementary charging, LiFePO4 storage, typical pole 7–9 m, for coastal, plateau, mining and weak-grid roads.

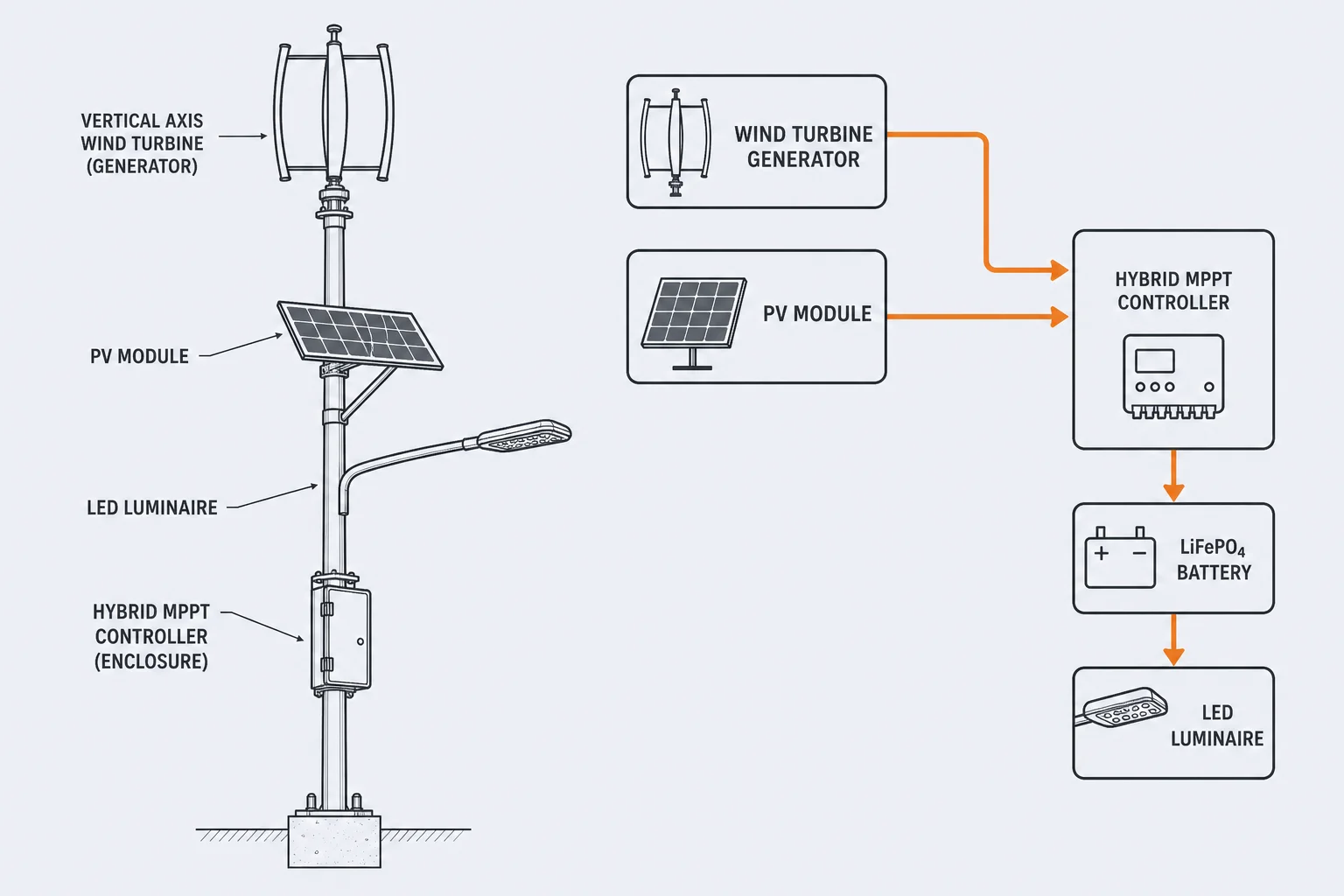

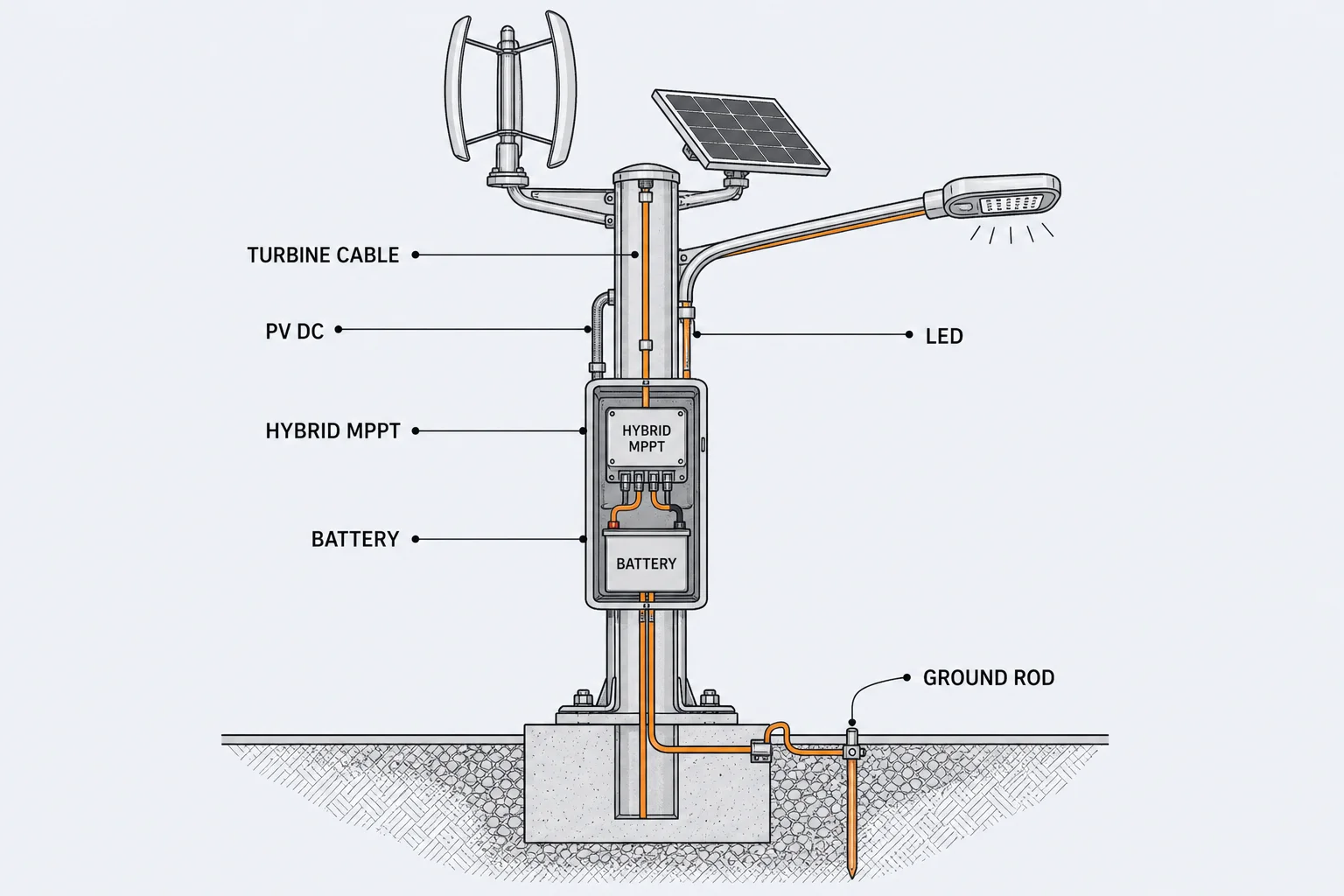

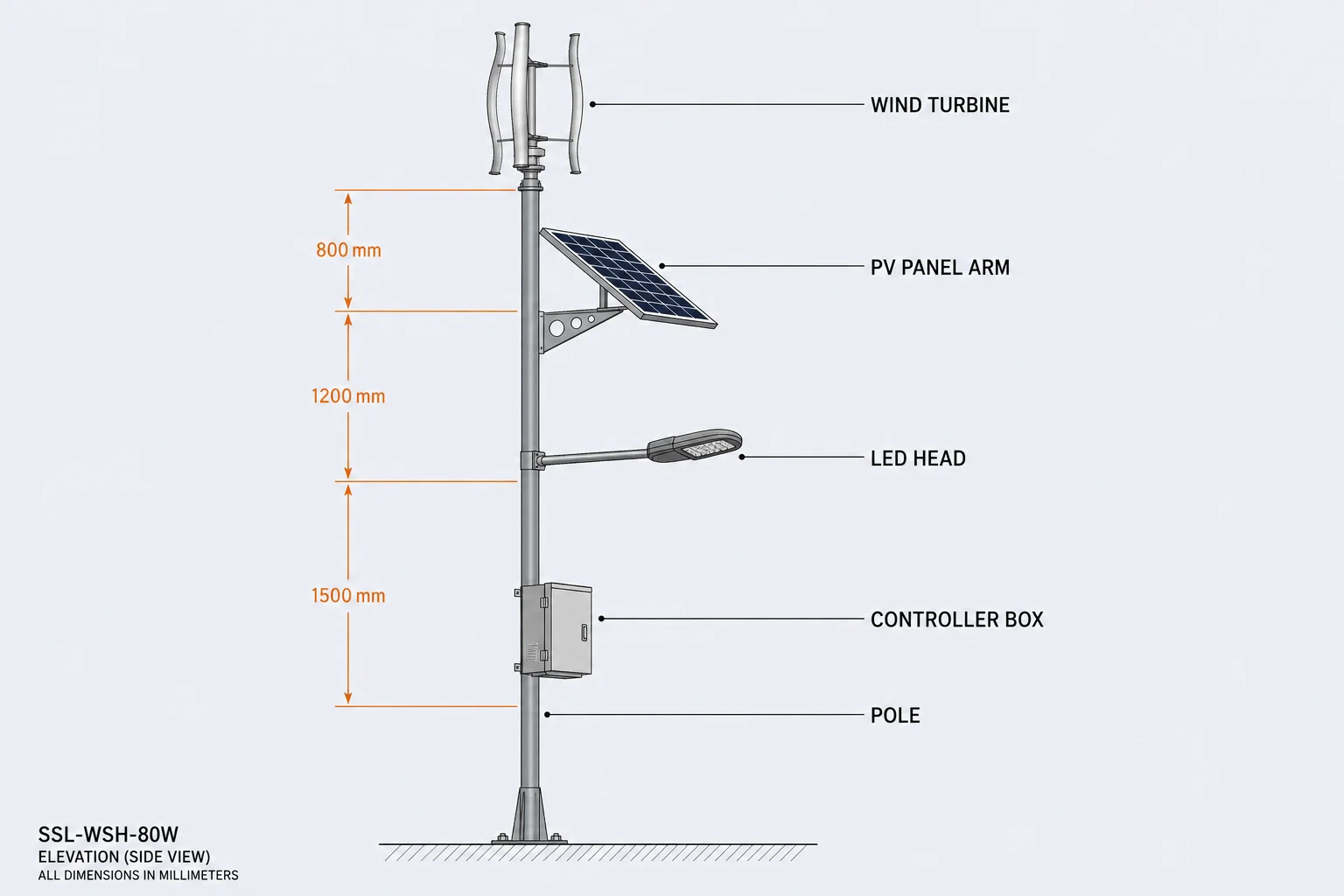

System architecture · Panel layout & photometrics
Click to expand Click to collapse
Photometrics & road simulation
Technical specifications
| LED power | 60W (custom 60–120W) |
|---|---|
| PV module | Mono 80W |
| Wind turbine | 300W vertical / horizontal axis options |
| Battery | LiFePO4 25.6V / 30Ah |
| Luminous flux | 7200 lm (typical) |
| IP rating | IP65 |
| Recommended pole | 7–9 m |
| MOQ | 100pcs |
| Lead time | 30–45 days |
All-in-one series comparison
Click to expand Click to collapse
| Model | Luminous flux | Autonomy | Pole height | MOQ | Reference |
|---|---|---|---|---|---|
| 60W Current page | 7200 lm | 12 h/night | 7–9 m | 100 pcs | On request |
| 80W | 9600 lm | 12 h/night | 8–10 m | 100 pcs | On request |
| 100W | 12000 lm | 12 h/night | 8–10 m | 100 pcs | On request |
| 120W | 14400 lm | 12 h/night | 9–12 m | 100 pcs | On request |
Core component stack
Click to expand Click to collapse
PV module
Grade-A mono-Si
Complements wind charging · tilt/spacing optimized
LiFePO4 battery
Automotive-grade cells
≥6000 cycles @ 80% DOD · 5-year warranty
LED source
Imported LED chips (brand optional)
L70 ≥50,000 h · CRI ≥70 · 3000–5700K
Hybrid controller
Industrial hybrid MPPT
Dual wind/solar MPPT · full protection suite
Packing & container loading
Click to expand Click to collapse
Typical values — confirm carton size and loading plan before bulk order.
| Unit carton (L×W×H) | 78 × 32 × 18 cm |
|---|---|
| Gross / net weight | 12.5 kg / 11.2 kg |
| 20GP loading | ≈ 520 pcs (typical — confirm before order) |
| 40HQ loading | ≈ 1,180 pcs (typical — confirm before order) |
| Pallet scheme | 12 pcs/pallet, wood + stretch wrap — customizable |
Product features
Click to expand Click to collapse
Complementary power
Solar charges by day; wind supplements at night and low-irradiance periods.
Project sizing
Turbine, PV and battery sizing based on local wind, sun hours and road width.
Customization
Custom housing, wattage, comms and branding with tender documentation.
Applications
Click to expand Click to collapse
- Coastal highways and port roads
- Plateau, pastoral and remote villages
- Mining, oilfield and industrial park roads
- Weak-grid or off-grid area lighting
Datasheets & downloads
Product datasheets and engineering files for offline review and internal approval.
OverviewDrawings
Product datasheet
Full specifications and compliance summary
Request fileInstallation and commissioning guide
On-site steps, wiring and safety notes
Request fileIES / LDT photometric files
For DIALux, Relux and lighting design tools
Request fileDrawings + specs pack
Install drawings, dimensions, IES/LDT and full spec sheet
Request fileCertifications & test reports
Click to expand Click to collapse
Preview certificates for tender review — full scanned packs available on request.
OEM / ODM customization
Click to expand Click to collapse
| Option | Specification |
|---|---|
| LED wattage | Custom 60–120W |
| Turbine | 300–500W VAWT / HAWT |
| PV module | 60–120W configurable |
| Comms | LoRa / 4G optional |
Project photos & videos
Click to expand Click to collapse
On-site installation
Hybrid pole, turbine and PV installation
Request full videoDaytime coastal project
Delivered hybrid road lighting case
Request full videoNight road lighting
Real project illumination at night
Request full video
Warranty & global support
Warranty & supply
Value-added services
Luminaire warranty3 years (extendable to 5)
Free DIALux layout design
Battery warranty5 years / ≥6000 cycles
Tender documentation support
Overseas spare parts7–15 day dispatch · core SKUs in stock
Long-term supply for EPC projects
Regional supportRemote project support + partner installer network
Remote installation and commissioning guidance
Frequently asked questions
Click to expand Click to collapse
What pole height suits 60W hybrid?
Typical recommendation: 7–9 m. Final layout should follow local wind, sun and lighting standards.
Where does hybrid lighting work best?
Coastal, plateau and open zones where wind supplements inconsistent solar charging.
Project support
Request a quotation or submit road details for a preliminary DIALux lighting layout.
Quotation
Get a quotation for your project
Share wattage, quantity and destination — our engineers reply within 24 hours with pricing and datasheets.
- MOQ
- 100pcs
- Lead time
- 30–45 days
- Reply
- Within 24 hours
DIALux layout
Free lighting layout (DIALux)
Submit road details — our engineers reply with a preliminary DIALux layout within 3 — business days.
SSL-WSH-60W · Wind-Solar Hybrid Street Light 60W
