Anchor cage rebar
HRB400 rebar
Bent to foundation drawing · custom spacing
Back to home

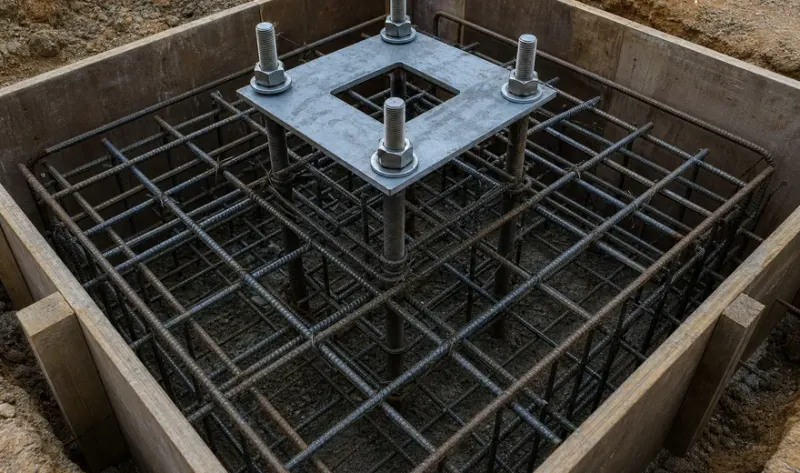

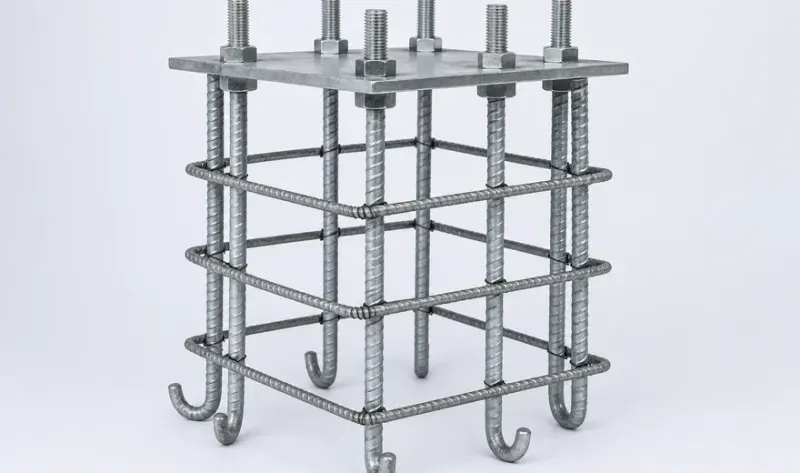

Ground Anchor Rebar Cage
Prefab ground anchor cage sized for pole height and local wind load requirements.
Structure & installation drawings
Click to expand Click to collapse
Technical specifications
| Rebar grade | HRB400 |
|---|---|
| Anchor bolts | Q235 / grade 8.8 |
| Design basis | Pole height + local wind |
| MOQ | 100pcs |
| Lead time | 7–15 days |
Hardware bill of materials
Click to expand Click to collapse
Anchor bolts
Q235 foundation bolts
HDG · grade & length per foundation design
Template & locators
Steel setting template
Holds bolt pattern and embed height
Foundation notes
Engineering pack
Concrete grade, embed depth & cure notes (project-specific)
Packing & shipping
Click to expand Click to collapse
Typical values — confirm carton size and loading plan before bulk order.
| Unit carton (L×W×H) | 78 × 32 × 18 cm |
|---|---|
| Gross / net weight | 12.5 kg / 11.2 kg |
| 20GP loading | ≈ 520 pcs (typical — confirm before order) |
| 40HQ loading | ≈ 1,180 pcs (typical — confirm before order) |
| Pallet scheme | 12 pcs/pallet, wood + stretch wrap — customizable |
OEM / ODM customization
Click to expand Click to collapse
| Option | Specification |
|---|---|
| Cage length | Custom per foundation drawing |
Warranty & global support
Warranty & supply
Value-added services
Hardware warranty2 years (galvanizing workmanship)
Custom pole/flange drawing support
FastenersMaterial certs per batch on request
Tender install pack assistance
Overseas supply7–15 days · bulk project packaging
Remote installation guidance
Frequently asked questions
Click to expand Click to collapse
Does the cage include anchor bolts?
Standard kit includes anchor bolts, nuts, washers and template; cage-only supply available per drawing.
Project support
Request bulk hardware pricing or submit pole and foundation details for a custom bracket or anchor kit quote.
Quotation
Get a quotation for your project
Share pole size, quantity and destination — we reply within 24 hours with pricing and install drawings.
- MOQ
- 100pcs
- Lead time
- 7–15 days
- Reply
- Within 24 hours
Custom sizing
Custom hardware sizing
Provide pole OD, arm length or foundation drawing — engineering will confirm bracket, cage or bolt kit sizing within 3 business days.
ACC-GAC-01 · Ground Anchor Rebar Cage
