VAWT rotor
Alloy blade assembly
Low start torque · omnidirectional capture
Back to home

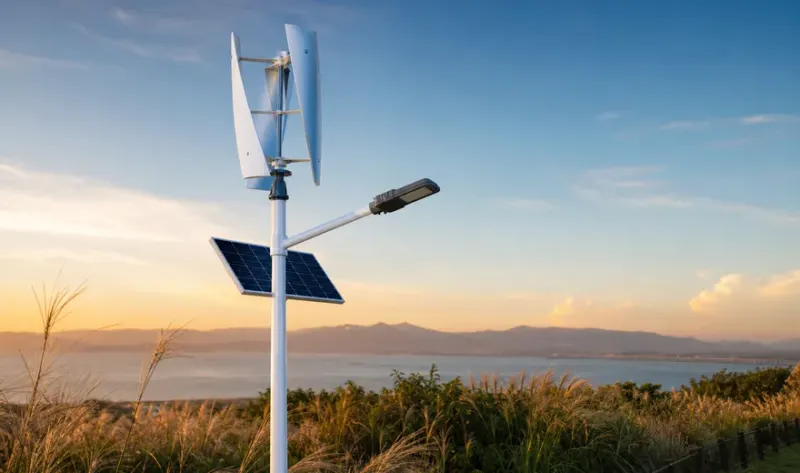

Vertical Axis Small Wind Turbine 300W
300W vertical-axis turbine for hybrid street lights and small off-grid loads.
System architecture · Panel layout & photometrics
Click to expand Click to collapse
Technical specifications
| Rated power | 300W |
|---|---|
| Type | Vertical-axis VAWT |
| Cut-in speed | 2.5 m/s |
| Output | 12V / 24V DC |
| IP rating | IP54 |
| MOQ | 10pcs |
| Lead time | 15–25 days |
Core component stack
Click to expand Click to collapse
PM generator
3-phase permanent magnet
300W rated · high efficiency · low noise
Bearing & main shaft
Sealed bearing set
Corrosion-resistant lube · long service life
Mounting flange
Hot-dip galvanized steel
Top/side mount · custom bolt pattern & pole OD
Packing & container loading
Click to expand Click to collapse
Typical values — confirm carton size and loading plan before bulk order.
| Unit carton (L×W×H) | 78 × 32 × 18 cm |
|---|---|
| Gross / net weight | 12.5 kg / 11.2 kg |
| 20GP loading | ≈ 520 pcs (typical — confirm before order) |
| 40HQ loading | ≈ 1,180 pcs (typical — confirm before order) |
| Pallet scheme | 12 pcs/pallet, wood + stretch wrap — customizable |
Product features
Click to expand Click to collapse
Compact & quiet
Small VAWT suitable for pole-top or side mount with minimal nuisance.
Project support
Wiring and mounting guidance for pole, controller and battery bank.
Applications
Click to expand Click to collapse
- Hybrid street light pairing
- CCTV / PA off-grid power
- Pastoral and remote villages
- Coastal road auxiliary power
Datasheets & downloads
Product datasheets and engineering files for offline review and internal approval.
OverviewDrawings
Product datasheet
Full specifications and compliance summary
Request fileInstallation and commissioning guide
On-site steps, wiring and safety notes
Request fileIES / LDT photometric files
For DIALux, Relux and lighting design tools
Request fileDrawings + specs pack
Install drawings, dimensions, IES/LDT and full spec sheet
Request fileCertifications & test reports
Click to expand Click to collapse
Preview certificates for tender review — full scanned packs available on request.
OEM / ODM customization
Click to expand Click to collapse
| Option | Specification |
|---|---|
| Rated power | Custom 200–500W |
| Output | 12V / 24V DC options |
| Mounting | Top / side flange |
Project photos & videos
Click to expand Click to collapse
On-site installation
Real project pole and luminaire installation
Request full videoDaytime project case
Delivered road lighting in industrial park
Request full videoNight road lighting
Real project illumination at night
Request full video
Warranty & global support
Warranty & supply
Value-added services
Turbine warranty2 years (extendable to 3)
Hybrid system pairing guidance
Generator warranty2 years
Tender documentation support
Overseas spare parts7–15 day dispatch · blades/bearings on request
Remote installation and commissioning guidance
Frequently asked questions
Click to expand Click to collapse
What wind resource suits 300W VAWT?
Sites with mean wind speed ≥ 3.5 m/s; coastal and open pastoral zones perform best.
Project support
Request a quotation or submit road details for a preliminary DIALux lighting layout.
